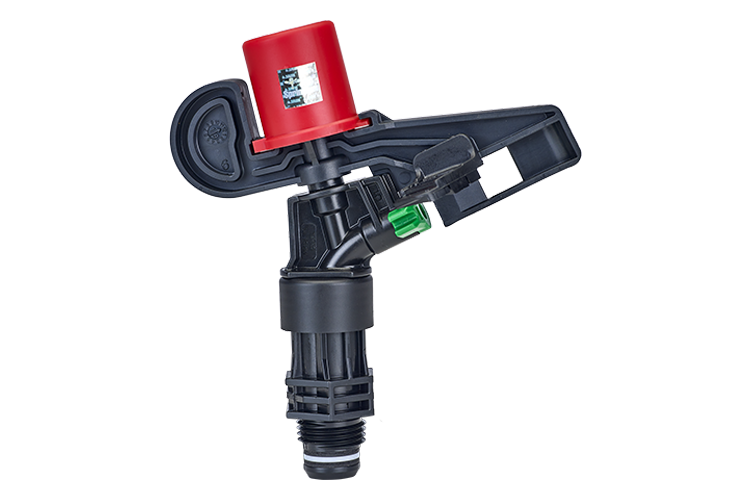

Acurain 6024 SD



Flow Rates (lph)

355 to 730

Working Pressure (kg/cm²)

2.0 to 3.0

Wetted Diameter (m)

15.0 to 20.0

Features & Benefits

Special Arc Water Pass
Special arched 12° water path facilitates wider radius of throw, reducing the number of sprinklers required per unit area
Unique Super Diffuser Plate
Unique hammer with SD (superdiffuser) plate design for uniform distribution
Red Cap For Protection
Red cap protects stainless steel spring from sand gives longer life to sprinkler
Innovative Bayonet Color Coded Nozzles
Integrated stream straightening vanes in nozzles for maximum throw
Equipped with High Performance Washers
Special washers used to give uniform & hassle free rotation
Threaded Inlet Connection
1/2" male BSP threaded inlet connection for connection with system

Applications

  • Orchards and plantations, especially table grapes and bananas for full coverage irrigation
