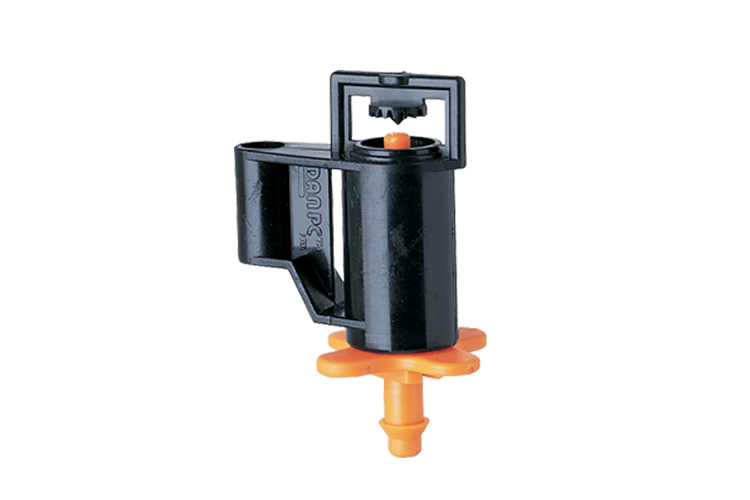

Dan jet PC


Flow Rates (lph)

19 to 76

Working Pressure (kg/cm²)

1.0 to 3.0

Wetted Diamerer (m)

2.4 to 5.6

Features & Benefits

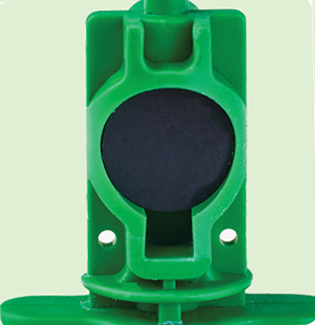

Unique Floating Diaphragm
Unique floating, self-flushing, and pressure compensating EPDM diaphragm
Color Coded Nozzles
Size color coded nozzles for easy indentification of flow rates
Specially Designed Side Ribs
Smooth streamlined side ribs to give minimum obstruction to waterjet
Multiple Attachment Options
Multiple attachment options like quick thread paralled & barbed for connection
