501-U Sprinkler


Flow Rates (lph)

100 to 250

Working Pressure (kg/cm²)

1.5 to 3.5

Wetted Diameter (m)

12.0 to 15.5

Features & Benefits

Innovative Spreader Design
Corrugated jet spreader for uniform distribution and fine water droplets for delicate irrigation of all crops

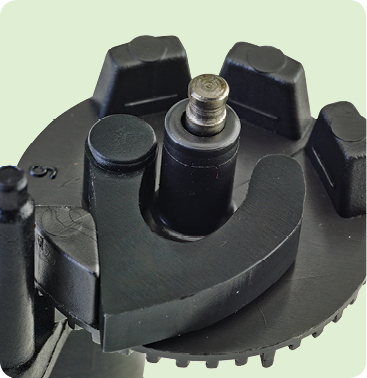

Special Hammer for Rotation
Unique turbo hammer for uniform rotation
Different Flow Rates Available
Specially designed color coded nozzle for different flow rates.
Neck Spring Protection Cover
Additional cover provided for neck spring protection
Easy to Assemble & Disassemble
For ease maintenance & inspection
Threaded Inlet Connection
Available in 1/2" male or 1/2" female BSP threaded connections


  • Overhead irrigation for extra-range spacings up to 8 m
  • Recommended for vegetables & nurseries, etc
