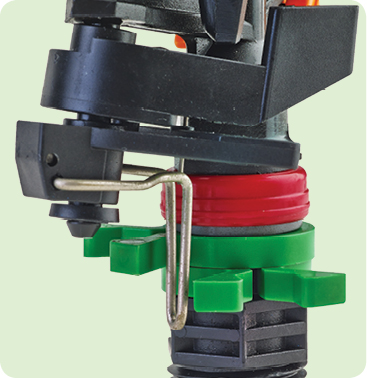

Impact Pop-up 805



Flow Rates (lph)

450 to 1180

Working Pressure (kg/cm²)

2.0 to 4.0

Wetted Diameter (m)

21.0 to 26.0

Features & Benefits

Rugged Ribbing Case
Rugged ribbing case for maximum strength and durability, also provides anti-vandalism anchorage
Diffuser Screw Control
Diffuser screw breaks water into smaller droplets for uniform watering
Finger-Tip Adjustment Mechanism
User friendly, finger tip adjustment to full or part circle mechanism
Vanes in Nozzle
Integrated stream-straightening vane for maximum range
High Performance Washer
Long life Teflon washer helps to give uniform and hassle free rotation
Option for Inlet Connection
Available in 1/2" female threaded connection for connectivity with system either from bottom or from one side.

Applications

  • For public lawns and residential gardens.
