5035 SD LP


Flow Rates (lph)

1210 to 2490

Working Pressure (kg/cm²)

1.5 to 4.0

Wetted Diameter (m)

24.5 to 35.2

Features & Benefits

Unique Hammer With SD Plate
Unique hammer with SD (super-diffuser) plate design for uniform distribution.
Red Cap for Protection of SS Spring
Plastic protection cap protects the spring from sand gives longer life to sprinkler
Heavy Duty Retraction Spring
Stainless steel retraction spring maintains uniform rotation speed
Innovative Bayonet Nozzles
Integrated stream straightening vanes in nozzles for maximum throw
Operates at low Pressure
Special sprinkler which operates at 1.5 kg/cm2 pressure

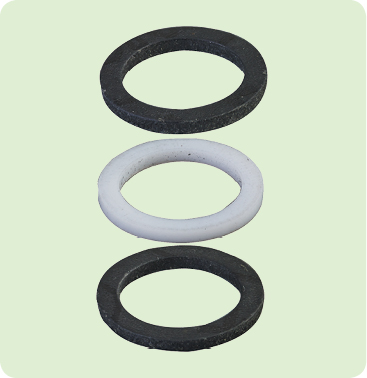

Equipped with High Performance Washers
Special washers used to give uniform & hassle free rotation along with leakage prevention


  • Suitable for field crops like pulses, oil seeds, vegetables, sugarcane, cotton, cereals, tea, coffee and fodder crops.
