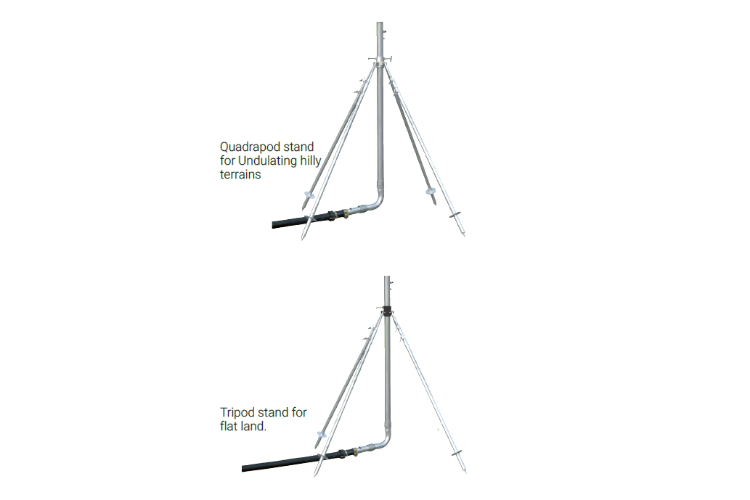

Riser Stand



Features and Specifications

• Fabricated from G.I. Pipes to give stable support.
• Easy to carry and install.
• Suitable to hold different riser sizes such as 11/4", 11/2", 2" and above
• Wide leg support gives better stability against sudden jerks of raingun rotation.
• Provides stable support even on hilly slopes.
• Available in standard riser length of 1, 11/2, 2 and 3m. Other riser lengths can be supplied on demand.
• Standard connection available is BSP female threaded. Other connections options available are,
- Quick Connect male connector - Plastic Clamp
- Quick Connect male connector - Single Metal Clamp
- Quick Connect male connector - Double Metal Clamp
- Quick Connect male connector - Metal Latch.
• Telescopic legs options available as a special request to provide flexibility in difficult terrain.

Applications

Used for installation and shifting of raingun in portable or semipermanent system.
