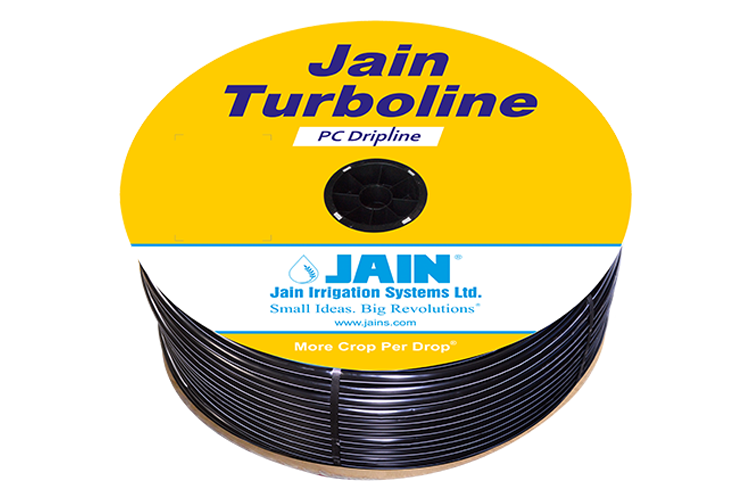

TurboLine PC ®



Sizes (mm)

16
20

Emitter Spacings (cm)

15
20
30
40
50
60
75
90
100

Nominal Discharges (lph)

16 mm:
1.1
1.6
2.2
3.5
20 mm:
0.9
1.6
2.2
3.8

Pressure Compensating Range

0.8 to 4 kg/cm² (7 to 71 psi)

Features & Benefits

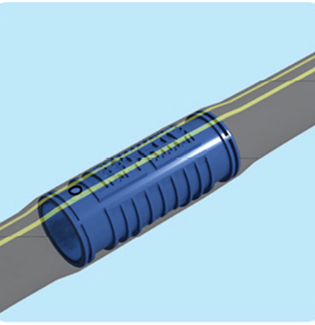

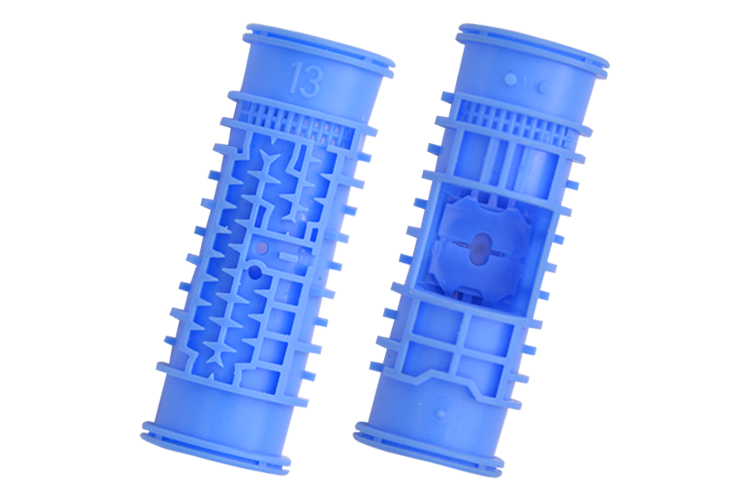

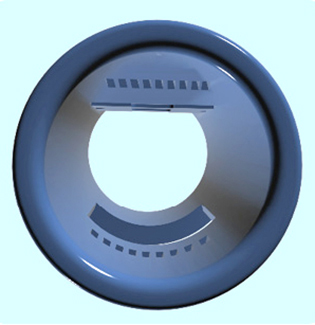

Integral, Cylindrical, Pressure Compensating Dripline
State-of-the-art cylindrical PC (Pressure Compensating) dripper ensures highest durability and excellent performance.

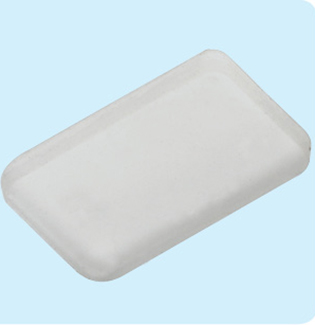

Precision Pressure Compensation
Injection moulded silicone diaphragm ensures precision in pressure compensation helps to maintain high discharge uniformity with diverse water qualities, chemicals and fertilizers.

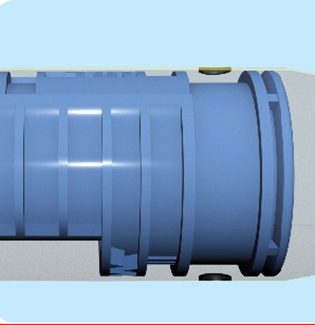

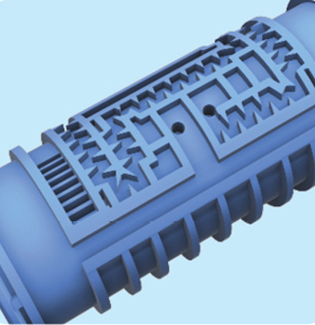

Individual Double Filter
Individual double filter and flushing mechanism for maximal clog resistance and self-cleaning.

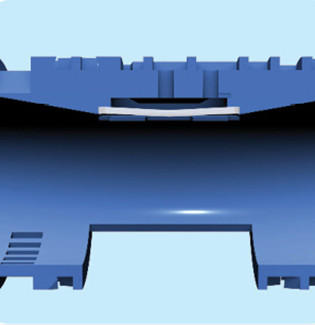

Dynamic Self Cleaning mechanism
Dynamic movement of diaphragm retracts dynamically to throw away particles which are blocking the emitter.

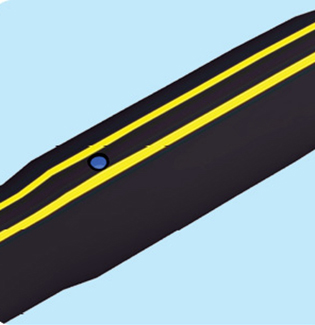

Multiple Outlet Holes
Precision multiple outlets breaks vacuum, prevents sand suction.
Marked with Two Parallel White Stripes ‘Twin - Line®
Symbol of quality. It also helps to ensure upright positioning of the dripper.
Stringent Quality Control
Each batch is tested for stringent quality parameter. Conforming to Indian standard IS 13488:2008 and international standard ISO 9261.

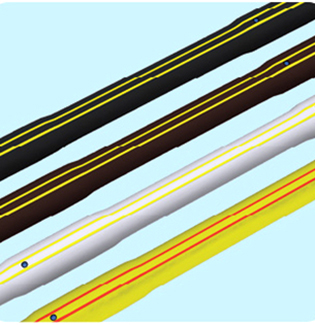

Flexibility in color selection
Black-for agriculture,
Brown-for landscape application,
White-for greenhouse application,
Purple-for reclaimed water application.

Applications

  • Ideal for irrigation of closely spaced row crops like sugarcane, cotton, banana, strawberry, floriculture, vegetables and spices.
  • Suitable for surface as well as sub–surface irrigation.
  • Recommended for undulating terrain & steep slopes and where longer lateral running length is necessary.
  • Open field application to maintain high field application efficiency.
  • Suitable for low operating pressure/ Gravity feed irrigation system.
