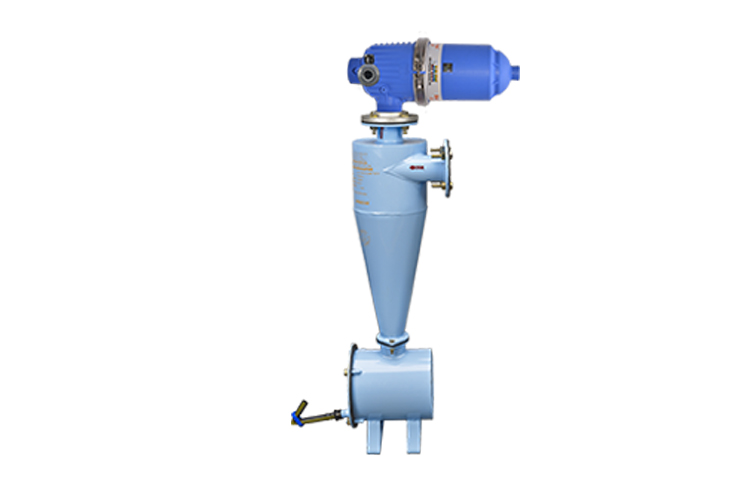

Spin Clean Screen Filter Silver



Connection Sizes (inch)

02
03

Nominal Flowrate (m³/hr)

25
40
50

Maximum Oprating Pressure(kg/cm²)

06

Features & Benefits

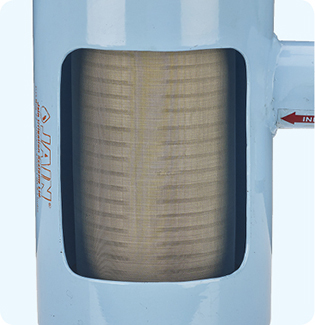

Innovative assembly of Hydrocyclone Filter and Screen Filter
Hydrodynamically designed Hydrocyclone filter to create maximum centrifugal action to separate particles heavier than water and screen filter for secondary filtration
Standard Epoxy Coating for protection from corrosion
Coated with more than 70 micron thick light blue coloured epoxy powder from both inside and outside surface for protection against corrosion and weather effects
Various Connection Options Available
Threaded connection, Flanged connection or Easy Fix™ connection available
Separate Draining Facility Available
Large volume of dirt collection chamber with drain valve for Hydrocyclone filter and separate drain valve for Disc Filter

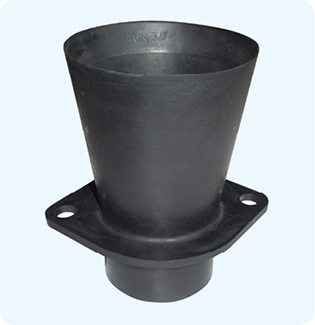

Special Rubber Cone
Special rubber cone is provided at the bottom of the cone to prevent wearing

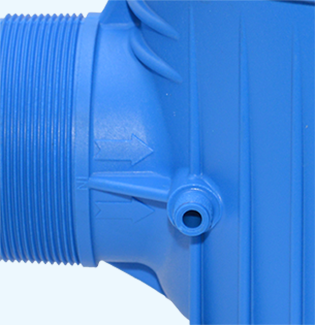

Equipped with Pressure Check Assembly
To check pressure from inlet side and outlet side, additional Pressure check assembly provided

Applications

  • Used in micro irrigation systems to remove sand & slit particles from irrigation water.
