Disclean PL Filter – Multiple



Connection Sizes (inch)

04
06
08

Nominal Flowrate (m³/hr)

80
100
150
200

Maximum Oprating Pressure(kg/cm²)

08

Features & Benefits

Radially Convergent Grooved Discs
Disclean® element with strong, precision engineered and radially grooved disc to provide fine three dimensional filtration. (Flow direction Out to In)
Special Manifold Design
For multiple option mild steel / HDPE manifold is designed to connect filters parallelly
Equipped with Pressure Check Assembly
To check pressure from inlet side & outlet side, additional pressure check assembly provided
Separate Vacuum Releasing Facility
Separate vacuum breaker provided on top of filter to release air / vacuum at start or end of system (from 2" onwards).

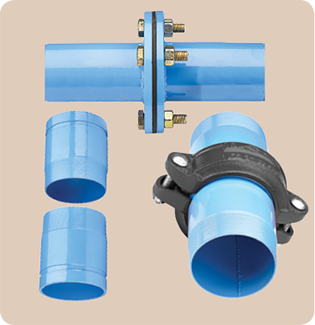

Various Connection Options Available
Threaded connection, Flanged (universal) connection or Easy Fix™ connection available.
Separate Draining Facility Available
Separate additional Drain Valve provided to remove dirt from filter

Applications

  • Used for water filtration of drip & landscape irrigation system of higher flow requirement.
