Clean Master Multiple Silver



Connection Sizes (inch)

04
06

Nominal Flowrate (m³/hr)

80
100
120
150

Maximum Oprating Pressure(kg/cm²)

06

Features & Benefits

Standard Epoxy Coating for Protection from Corrosion
Coated with more than 70 micron thick light blue coloured epoxy powder from both inside and outside surface for protection against corrosion and weather effects
Unique Manifold Design
Unique design of manifold for single tank unit facilitates flushing with filtered water
High Quality Silica Sand as Media
Filtration media is crushed silica sand/quartz gravel of particle size 1 mm to 2 mm (0.039 to 0.078 inch)
Innovative Candle Assembly
Innovative Candle assembly provided to pass filtered water in system

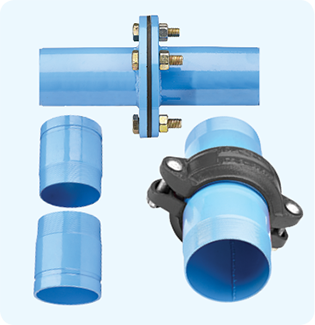

Various Connection Options Available
Threaded connection, Flanged connection or Easy Fix™ connection available
Various Options for Backwash
Available in manual, semi automatic or fully automatic backwash options

Applications

  • For filtration of water in micro irrigation systems to prevent clogging due to physical and biological impurities.
