Flange Adaptor

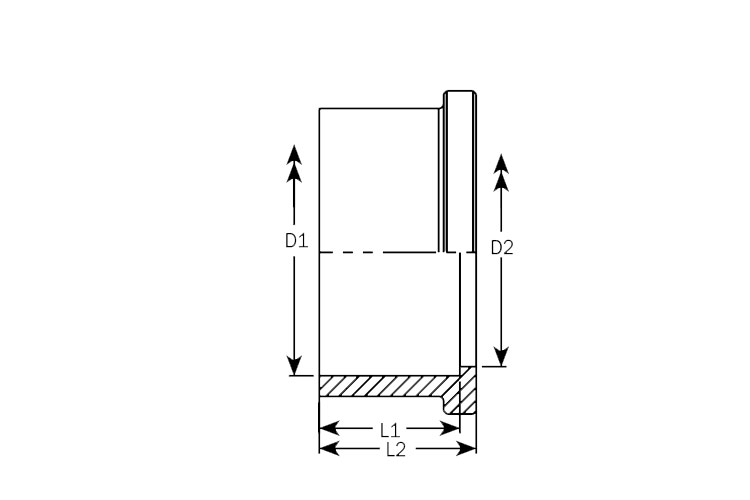

Technical Specifications

Code Size
mm		 D1
mm		 D2
mm		 L1
mm 		L2
mm
Min. Max.
PFA050 50 50.1 50.3 46.0 31.0 34.0
PFA063 63 63.1 63.3 58.0 39.0 40.5
PFA075 75 75.1 75.3 70.0 45.0 48.5
PFA090 90 90.1 90.3 79.0 51.0 57.0
PFA110 110 110.1 110.3 103.0 63.0 68.0
